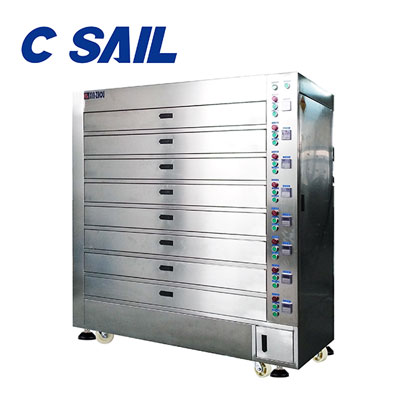

UV Light Curing Equipment for UV Adhesives
This product has been discontinued and removed from our shelves.
This type of UV curing equipment adopts 380V industrial power supply, of course it can be changed if you have special requirements, and we can also adjust the oven size or the LED light source dimension and power and etc.
| Power Supply | AC380V 3φ 50/60Hz 1.5kVA |
| Application | Fast drying for UV glue/adhesive |
| Dimension | Effective illumination dimension in each layer W1200mm*D600mm*H230mm, 5 layers in total. |
| Specification | External dimension W1600mm*D650mm*H1580mm (for reference only, customizing at your desire) |
| Light tubes | 30 pieces 40W light tubes, altitude height of 120mm from the oven bottom. |
| Drawer for LED light tubes | Adopts 1.0mm 201# brushed stainless steel plate, the light tubes adopt slide drawer structure for easier replacing. |
| Cooling method | Adopts forced ventilation system with cooling effects, two exhaust pipes with diameter of 150mm. |
