150C Vacuum Oven

Drying Chamber for Lithium Battery

150C Vacuum Oven

Battery dry chambers are used for quick drying of lithium battery cells. This battery dryer chamber is standard designed drying equipment according to the requirements for vacuum, dimension, capacity and operating temperature in the lithium battery industry.

We offer clients 3 types of battery dry chambers; please contact us for more specific information.

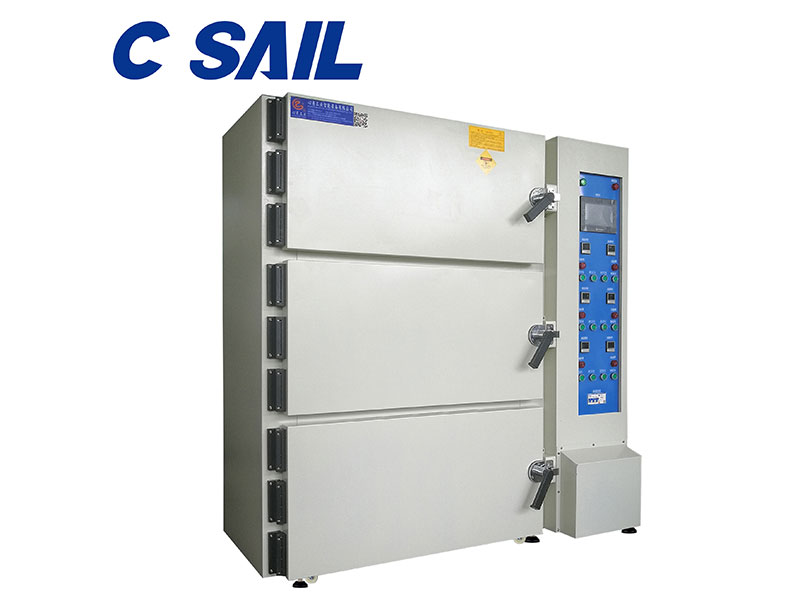

ZKCO-2F-3D 150C Vacuum Oven
Model ZKCO-2F-3D
Internal Dimension 3×330(H)×800(W)×600(D)mm
External Dimension 2200(H)×1350(W)×1080(D)mm
Principle Adopts special purpose detector: vacuum degree (-95KPA) or Nitrogen (-18KPA), the output signal is sent to PLC which can finish: vacuum supply-nitrogen filling-vacuum supply-nitrogen filling (recycling)
Main Parameters 1: Independent temperature control for 3 chambers.
2: Temperature range: room temperature~150℃
3: Vacuum degree: -0.095~-0.1Mpa
4: Temperature uniformity: ±3%℃
5: Side wall temperature: ﹤35℃
6: Independent large flow rate hot air circulation for 3 chambers
7: Power: three-phase five wire system, AC 380V
8: Maximum power consumption: 18KWA
9: Effective dimension of each chamber: H330mm×W800mm×D600mm
10: Net weight: 730KG
11: Heat-up time: About 30 minutes from room temperature ~90 ºC. Heating tube power: 5KW (each layer)
12: Heating method: internal heating
Send an Inquiry

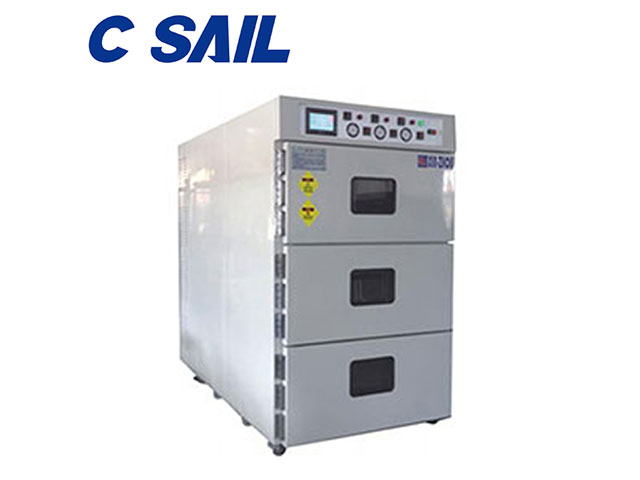

ZZKCO-3F-3D 150C Vacuum Oven
Model ZZKCO-3F-3D
Internal Dimension 3×330(H)×800(W)×800(D)mm
External Dimension 2200(H)×1350(W)×1080(D)mm
Principle Adopts special purpose detector: vacuum degree (-95KPA) or Nitrogen (-18KPA), the output signal is sent to PLC which can finish: vacuum supply-nitrogen filling-vacuum supply-nitrogen filling (recycling).
Main Parameters 1: Independent temperature control for 3 chambers.
2: Temperature range: room temperature~150℃
3: Vacuum degree: -0.095~-0.1Mpa
4: Temperature uniformity: ±3%℃
5: Side wall temperature: ﹤35℃
6: Independent large flow rate hot air circulation for 3 chambers
7: Power: three-phase five wire system, AC 380V
8: Maximum power consumption: 18KWA
9: Effective dimension of each chamber: H330mm×W800mm×D600mm
10: Net weight: 730KG
11: Heat-up time: About 30 minutes from room temperature ~90 ºC. Heating tube power: 5KW (each layer)
12: Heating method: internal heating
Send an Inquiry

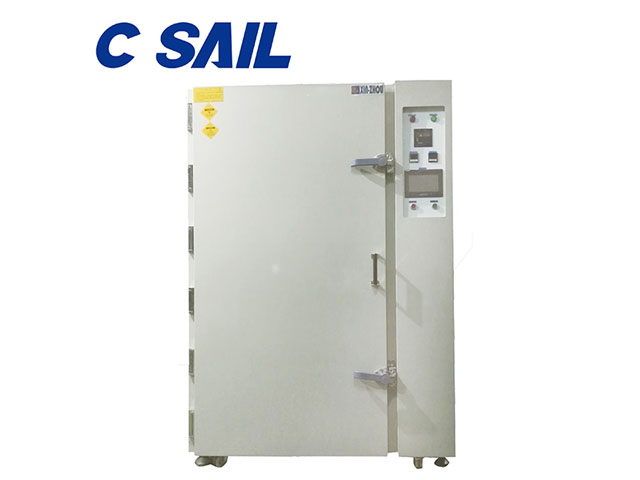

ZKCO-7F 150C Vacuum Oven
Model ZKCO-7F
Internal Dimension W800mm×D900mm×H1500mm
External Dimension W1250mm×D1400mm×H2275mm
Principle Be able to achieve: vacuum supply -nitrogen filling-heating-heat preservation-pressure maintaining and drying- vacuum supply (automatic recycling control). Be beneficial for discharging moisture and preventing oxidation. Manual control and automatic control are optional.
Main Parameters 1: Room temperature-150℃ (full load test, takes about 30 minutes)
2: It takes less than 30 minutes from starting heating to finish baking.
3: Header Control Precision: ±1℃
4: Temperature Uniformity: ±2℃ (full load test)
5: Cooling Rate: It takes less than 1 hour from 90℃ to below 40℃.
6: Adopts single wall and integrated pump box design, the control box is located on the right side. And blanking plate is equipped.
7: Vacuum Degree: ≤133Pa
