Continuous Process Oven Manufacturer

Tunnel Ovens

Robust Conveying Systems & Support Structures for Continuous Ovens and Furnaces

The conveying system and related components of our continuous furnaces/ovens are all heavy duty designed with strong bearings, rollers, supporting frames and etc. to be applicable for heavy product drying and processing.

Continuous Process Ovens can be used for a range of applications, including:
Metal post-processing such as tempering, annealing, curing, pre-heating, drying and etc.
  • LCD Curing Oven

    This is a type of large volume continuous process oven & furnace, is equipped with 380V power adopter, and adopts sectional heating method and forced convection system to save significant operating cost and higher drying and curing efficiency. If you are interested in this type of drying equipment, we are pleased to make modifications according to your specific production requirements.

    Power supply: AC380V 3φ 50Hz 15kVA
    Internal dimension: W650mm×L3000mm×H50mm
    External dimension: W1260mm×L4500mm×H1080mm (for reference only, customizing at your desire) READ MORE >

  • SCO-IR-8-4 Infrared Tunnel Oven

    Application: Mainly applies to TP, LCD, coverlens, OGS, LGP, films and other precision parts, widely used in fields like touch panel silver paste drying, film heating aging, CG (cover glass) protection ink, mirror aluminum pigment, IR blocking/absorbing ink and other curing and drying industries.
    Power supply: AC380V  3φ  50Hz  65kVA
    Internal dimension: W900mm×L6000mm×H80mm,
    External dimension: W1290mm×L9000mm×H1210mm(for reference only, customizing at your desire) READ MORE >

  • SCO-IR-10-4 Infrared Tunnel Oven

    Power supply: AC380V  3 φ  50HZ  84 kVA
    External dimension: W1460mm×L9400mm×H1510mm (for reference only, customizing at your desire)
    Internal dimension: W1000mm×L6000mm×H50mm

    Detailed dimension:
    Cooling zone: 1500mm (thermal insulation included, additional medium-efficiency filter)
    Discharging zone: 800mm
    Total length of 9.4m READ MORE >

  • Dust-Free Industrial Tunnel Oven

    Power supply: AC380V 3φ 50Hz 90kVA
    Internal dimension: W900mm×L6943mm×H850mm,
    External dimension: W11380mm×L11943mm×H3000mm (for reference only, customizing at your desire)

    Detailed dimension
    Feeding zone: 1000mm, heating zone: 6943 mm (divided into 7 sections, each section has length of 1000mm and equipped with individual temperature control module.) Discahrging zone: 1000mm, cooling zone:2000 mm (equip with one 1HP cooling fan, additional high-efficiency filter, and the bottom of cooling zone is equipped with 1 forced cooling exhaust fan.)
    Conveyor width: 600 mm, feed/discharge opening height: 650 mm.
    Conveyor altitude height: 1000 mm. READ MORE >

  • SCO-4-8 Tunnel Oven

    Power supply: AC380V  3φ  50Hz  40kVA
    Internal dimension: W550mm×L4200mm×H100mm,
    External dimension: W860mm×L2768mm×H1500mm (for reference only, customizing at your desire)

    Detailed dimension
    Heating zone: 4200 mm (divided into 8 heating sections)
    Conveyor width: 550 mm, feed/discharge opening height: 100 mm. READ MORE >

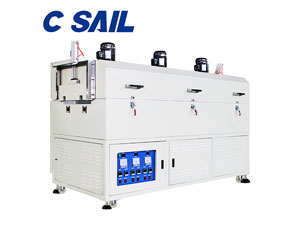

  • SCO-4-3 Tunnel Oven

    Application: Industrial oven designed for carbonization process of solid/polyer capacitors.
    Power supply: AC380V  3φ  50Hz  22kVA
    Internal dimension: W500mm×L2286mm×H120mm,
    External dimension: W860mm×L2286mm×H1500mm (for reference only, customizing at your desire)

    Detailed dimension:
    Heating zone: 2286 mm (divided into 3 sections)
    Conveyor width: 400 mm, feed/discharge opening height: 120 mm. READ MORE >

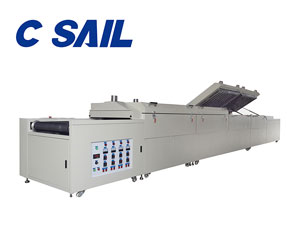

  • Tunnel Oven for Biological Industry

    The following are three generations of drying equipment Xinzhou has designed for pharmaceutical industries, and this type of drying equipment is equipped with 380V power supply, adopts 6-section heating method and an observation window for better control on the production progress.

    Power supply: AC380V 3φ 50Hz 40kVA
    Internal dimension: W1100mm×L10000mm 6-section heating, the front and back end section has length of 1000mm; all other four middle sections have length of 2000mm. each middle heating section is assembled with 240mm×80mm glass observation window.
    External dimension: W1360mm×L11200mm×H1150mm
    Airflow system: Adopts 6-section jet flow fan, air exhaust volume is approximately 3~6m3/min.
    Conveying speed: Max. 0.4~1m/min, each zone is equipped with 6 temperature sensors and 4 explosion proof lights. READ MORE >

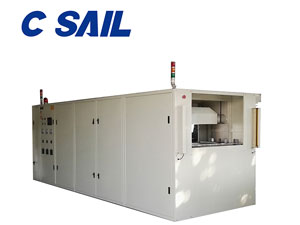

  • SECO-8-3 Tunnel Oven

    Power supply: AC380V  3φ  50Hz  38kVA
    Internal dimension: W1100mm×L6000mm×H750mm,
    External dimension: W1550mm×L8000mm×H1950mm (for reference only, customizing at your desire)

    Detailed dimension
    Feeding zone: 1000mm, discharging zone: 1000mm.
    Heating zone: 6000 mm (divided into 3 sections and each section has length of 2000mm)
    Conveyor width: 800 mm.

    Feed/discharge opening height: 100 mm.
    Three layers conveying system READ MORE >

  • SECO-10-3 Tunnel Oven

    Power supply: AC380V  3φ  50Hz  60kVA
    Internal dimension: W1100mm×L8000mm×H750mm,
    External dimension: W1550mm×L9000mm×H1950mm (for reference only, customizing at your desire)

    Detailed dimension
    Feeding zone: 500mm.
    Heating zone: 8000 mm (divided into 3 sections and each section has length of 2000 mm)
    Conveyor width: 1000 mm.
    Feed/discharge opening height: 100 mm.

    Temperature control system
    Temperature range: room temperature~200℃it takes approximately 20 minutes heating from room temperature to 150℃.
    Controller: adopts Xinzhou H961 temperature controller, digital setting, PID automatic calculation, LED display.
    The temperature controller has accuracy within ±0.5%FS;
    Temperature uniformity ±2%. (tested without loading) READ MORE >

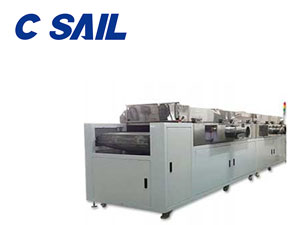

  • Infrared Tunnel Oven

    Power supply: AC380V  3φ  50Hz  60kVA
    Internal dimension: W1100mm×L8000mm×H750mm,
    External dimension: W1550mm×L9000mm×H1950mm (for reference only, customizing at your desire)

    Detailed dimension
    Feeding zone: 500mm.
    Heating zone: 8000 mm (divided into 3 sections and each section has length of 2000 mm)
    Conveyor width: 1000 mm.
    Feed/discharge opening height: 100 mm.

    Temperature control system
    Temperature range: room temperature~200℃it takes approximately 20 minutes heating from room temperature to 150℃.
    Controller: adopts Xinzhou H961 temperature controller, digital setting, PID automatic calculation, LED display.
    The temperature controller has accuracy within ±0.5%FS;
    Temperature uniformity ±2%. (tested without loading) READ MORE >

Advantages of continuous conveying system
This drying equipment adopts welded steel overall structure to ensure excellent stability.
The inner structure adopts heavy gauge aluminum or stainless steel to guarantee longer lifespan and minimum possibility to react with drying products under high temperature condition.
The inner structure of the continuous oven is designed for easier maintenance and cleaning purpose. Adopts higher efficient air distribution system.

Besides focusing on the heating chamber when customizing continuous processing ovens & furnaces, the conveying system is also a big concern, and Xinzhou provides the following custom continuous ovens according to different requirements on conveying methods.
Flat conveyor belt oven
Chain conveyor oven
Ferris wheel oven
Overhead trolley oven
Serpentine oven
Chain-on-edge oven
Slat type oven

Custom continuous process ovens built to your specifications
