Inert gas Oven

By utilizing method of heating N2 gas for drying, the industrial nitrogen oven is mainly used in industry fields that have higher requirements regarding the drying environment. For example, it can be used for drying IC integrated circuit in die bonding process or after packaging, and drying of oxidizable surface material, etc.

The most critical characteristic for designing industrial nitrogen oven lies in the reliable seal performance. Sealing is especially important for parts like doors, motors, air outlets and so on. The oxygen in the industrial nitrogen oven supplied by us is below 50PPM.

We can offer clients two types of industrial nitrogen oven, single chamber drying oven and double chamber drying oven. Basic information about these two industrial nitrogen ovens is listed below. Please contact us for more information.

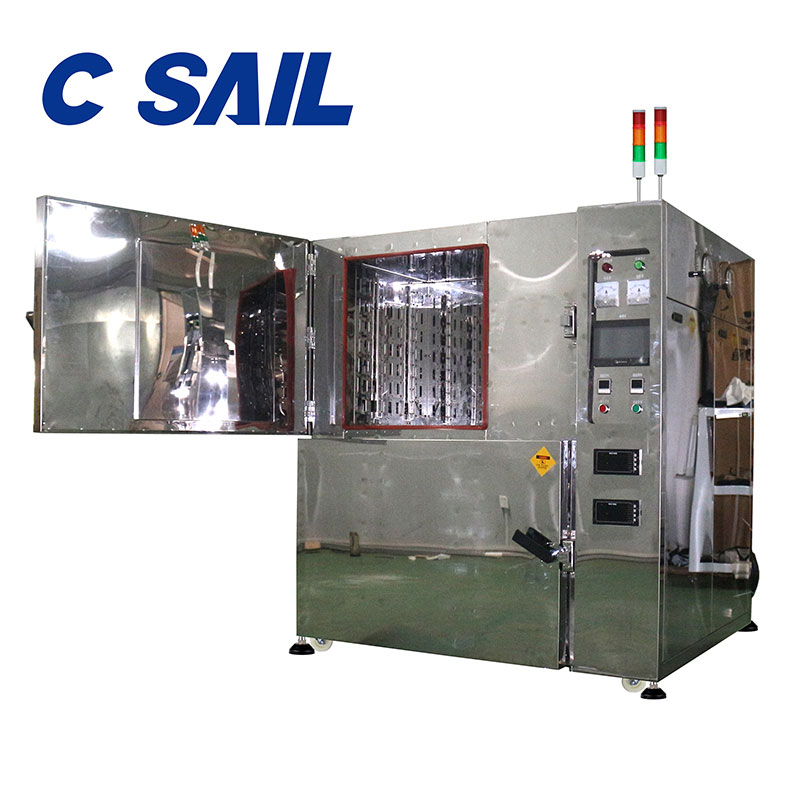

  • QCO-2DF Inert Gas Oven

    By adopting an air circulation system, the industrial nitrogen oven can prevent oxidation during the drying process by nitrogen circulation. The air circulation fan will blow out the heated nitrogen. Then the nitrogen will enter the inner chamber by air duct. Then the used nitrogen will be absorbed into the air duct for heat recycling to guarantee the temperature uniformity.
    Model: QCO-2DF
    Internal Dim. W×H×D /mm: W710mm×D610mm×H560mm (Double Wall)
    External Dim. W×D×H/mm: W1460mm×D1058mm×H1780mm
    Power: AC380V 3φ 60Hz 15kVA
    Temp. Range: Room Temperature~250℃
    Temperature. Controller: Adopts CAHO-P961 multi-step temperature controller, LED screen can be used for displaying digit and setting parameters. Automatic calculation of PID, the temperature control accuracy is ±0.3%. Signal source: Adopts world renowned brand temperature sensor. Output
    control component: SSR (solid-state relay) wireless signal output READ MORE >

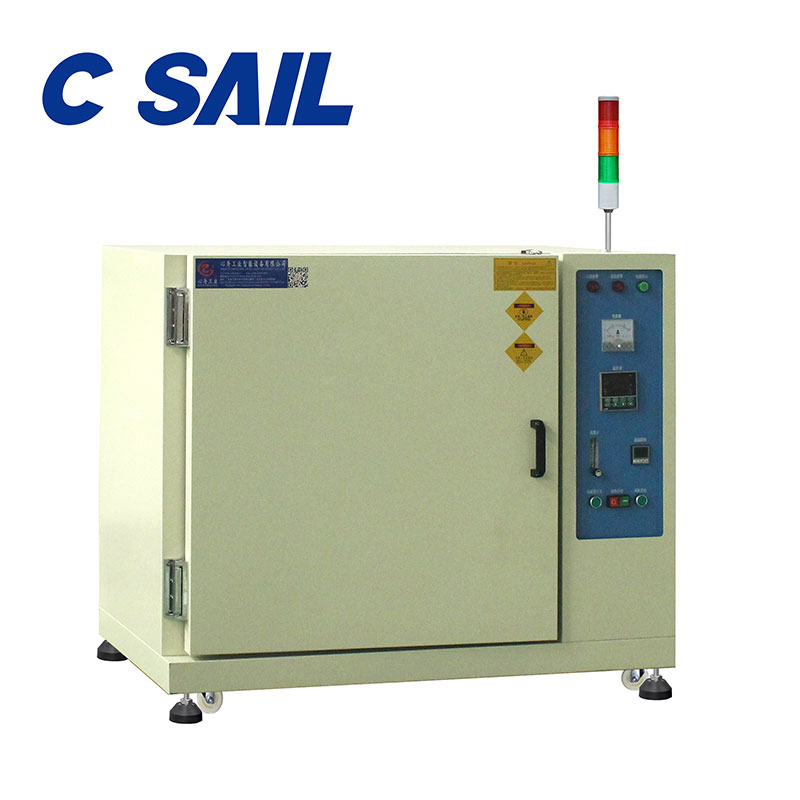

  • QCO-2 Inert Gas Oven

    By adopting an air circulation system, the industrial nitrogen oven can prevent oxidation during the drying process by nitrogen circulation. The air circulation fan will blow out the heated nitrogen. Then the nitrogen will enter the inner chamber by air duct. Then the used nitrogen will be absorbed into the air duct for heat recycling to guarantee the temperature uniformity.
    This tunnel infrared oven with hot air is widely used in sophisticated product industry, like TP, LCD, COVERLENS, OGS, light guide plate, film, as well as fields like curing of touch panel silver paste, film, CG printing ink, mirror like silver, IR oil, and more.
    Model: QCO-2
    Internal Dim. W×H×D /mm: W610mm×D610mm×H610mm
    External Dim. W×D×H/mm: W1260mm×D980mm×H1060mm
    Power: AC380V 3φ 50Hz 6kVA
    Temp. Range: Room Temperature~250℃ READ MORE >
