General Stacked Oven

The following shows one of our vertical industrial oven, this type of oven has uniform temperature spreading and designed with multiple layers (passes) to realize excellent heating and drying/curing results on different products at the same time.

Application: High temperature annealing process for hardware plastic, molds and other similar products.

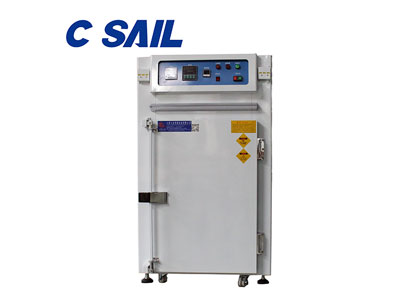

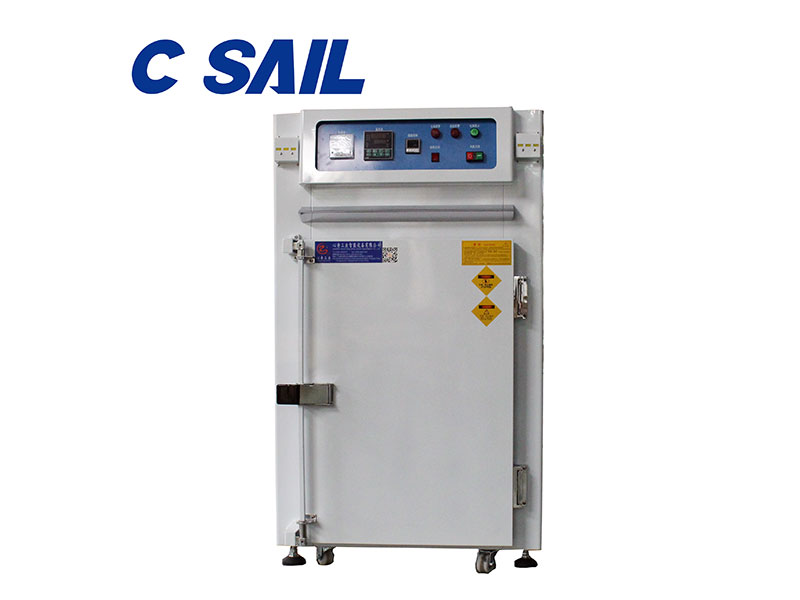

Model	SCO-3ED
Internal dimension W×D×H (mm)	620×500×900
External dimension W×D×H (mm)	980×720×1580
Power supply	380V 6kVA
Number of layers (passes)	9
Doors	Single door
Temperature range	Room temperature～200℃
Temperature uniformity	±2%
Send an Inquiry

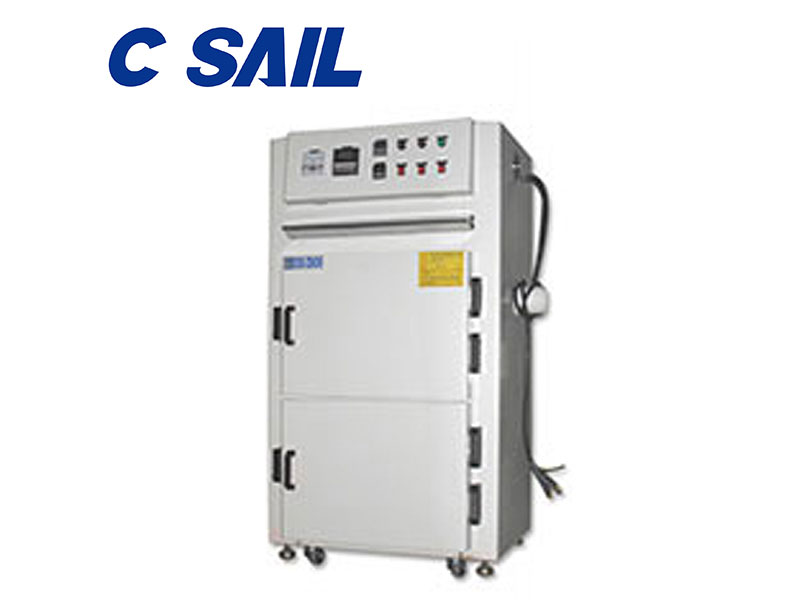

Model	SCO-3F-2
Internal dimension W×D×H (mm)	620×500×900
External dimension W×D×H (mm)	980×720×1580
Power supply	380V 6kVA
Number of layers (passes)	8
Doors	Double doors
Temperature range	Room temperature～200℃
Temperature uniformity	±2%
Send an Inquiry

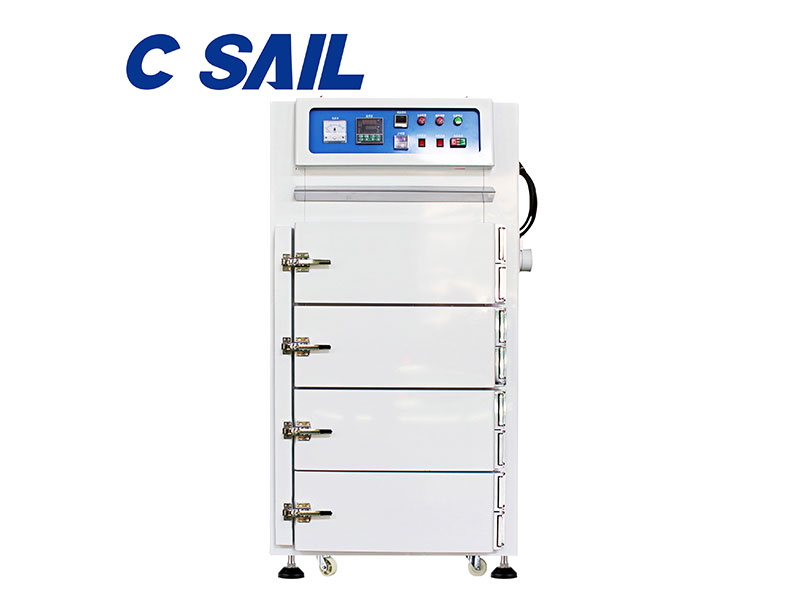

Model	SCO-4F-4
Internal dimension W×D×H (mm)	620×500×1000
External dimension W×D×H (mm)	980×720×1680
Power supply	380V 6kVA
Number of layers (passes)	8
Doors	Four doors
Temperature range	Room temperature～200℃
Temperature uniformity	±2%
Send an Inquiry

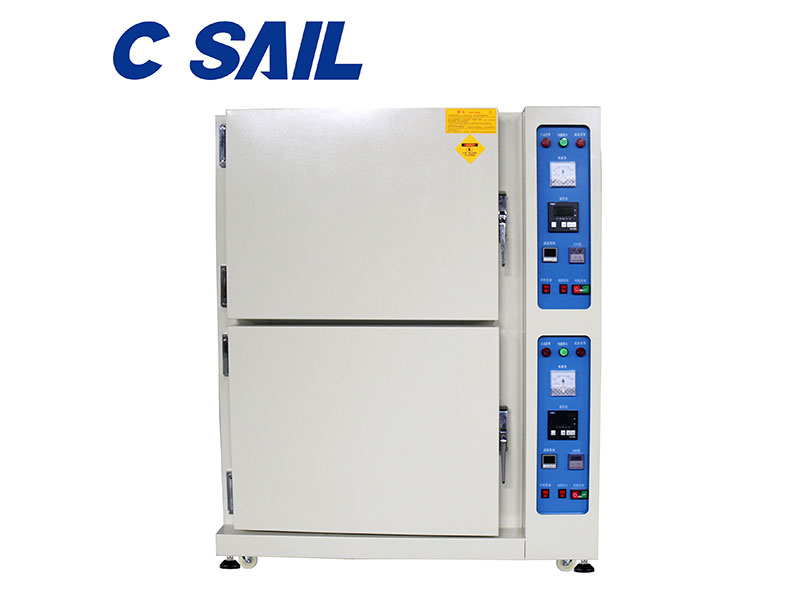

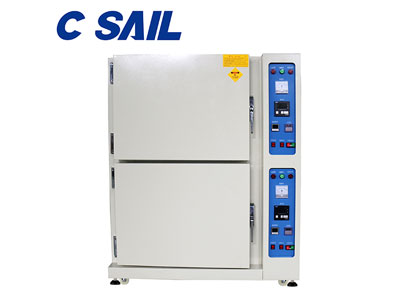

Model	SCO-2DF
Internal dimension W×D×H (mm)	620×500×450 (each heating chamber dimension)
External dimension W×D×H (mm)	1210×720×1560
Power supply	380V 7kVA
Number of layers (passes)	8
Doors	Double doors
Temperature range	Room temperature～200℃
Temperature uniformity	±1℃
Send an Inquiry

Model	SCO-4
Internal dimension W×D×H (mm)	800×600×1000
External dimension W×D×H (mm)	1180×820×1680
Power supply	380V 7kVA
Number of layers (passes)	10
Doors	Single door
Temperature range	Room temperature～200℃
Temperature uniformity	±2%
Send an Inquiry

Model	SCO-3F-3
Internal dimension W×D×H (mm)	620×500×1000
External dimension W×D×H (mm)	980×720×1680
Power supply	380V 6kVA
Number of layers (passes)	9
Doors	Triple doors
Temperature range	Room temperature～200℃
Temperature uniformity	±2%
