Infrared Conveyor Oven Manufacturer

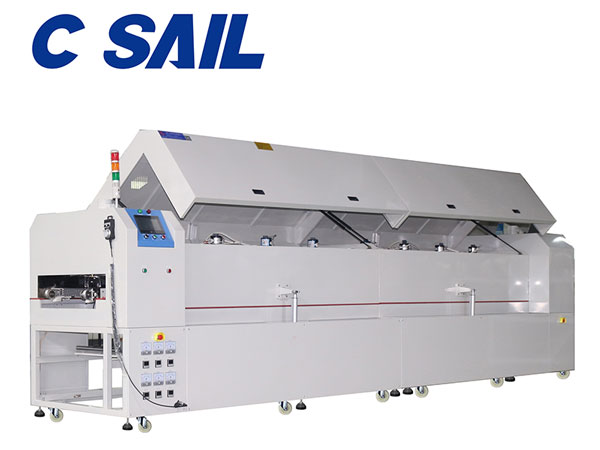

Infrared and convection ovens

This infrared and convection oven is customized for one specific client to realize super accurate temperature control when drying products. The power supply adopts 380V industrial level and we can always modify on this mature equipment if you have any specific requirements.
Power supply AC380V 3φ 50Hz 12kVA
Internal dimension W750mm×L1560mm×H30mm (1 step heating)
External dimension W1120mm×L2030mm×H1400mm (for reference only, customizing at your desire)
Temperature range 1.50℃~120℃, standard temperature -100℃ needs approximate 20 minutes. The thermo sensor is placed on top of the conveyor belt to monitor each product surface directly, heat uniformity reaches ±5% with temperature accuracy of ±1℃.
2. Adopts XZ-480 thermostats (alarm if temperature reaches the top limit), cooperated with SSR (solid-state relay) control, PID (proportional-integral-derivative) controller and LED display.
1. Adopts roller chain conveyor, cooperated with 180W 50:1 speed-regulated motor from Taiwan Tunglee.
2. Conveyor altitude height: 950±50mm;
3. Conveyor distance from oven top: 100-300mm;
4. Conveying direction: Right to left;
5. Inner structure made of SUS430# stainless steel sheets
Heating method Adopts 12 PCS AC 220V, 1kW IR heating tubes for uniform heat spreading.
Conveying speed Max. 0.5-5m/min.
