Polymerization Drying Machine

Product Examples

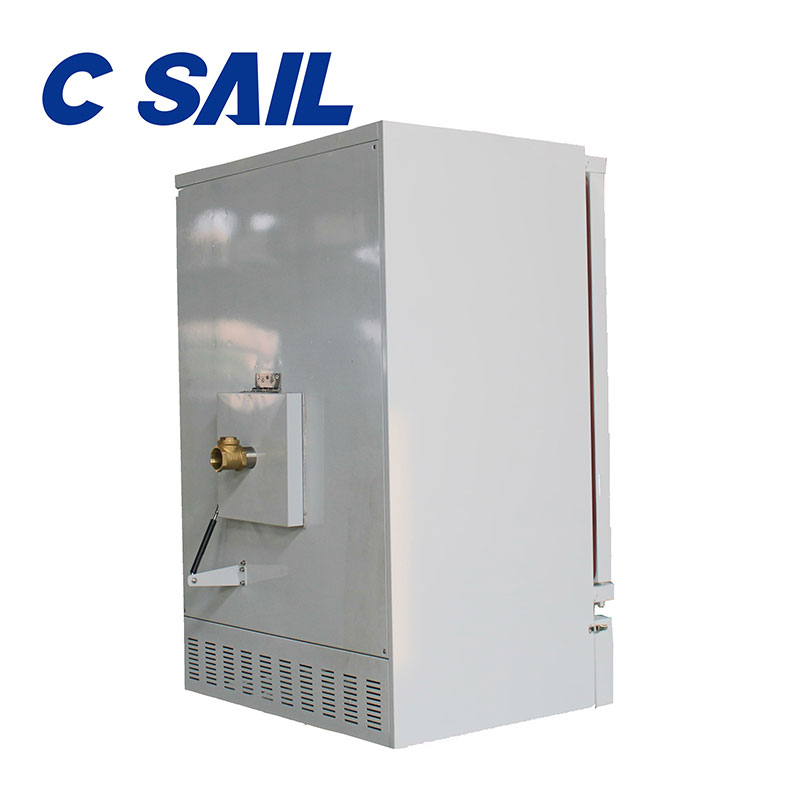

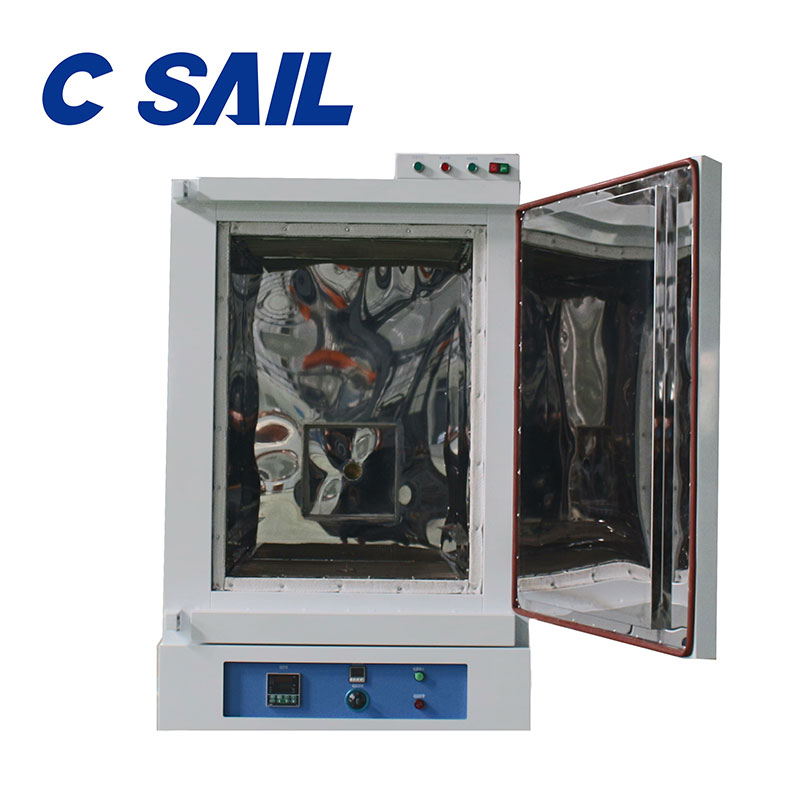

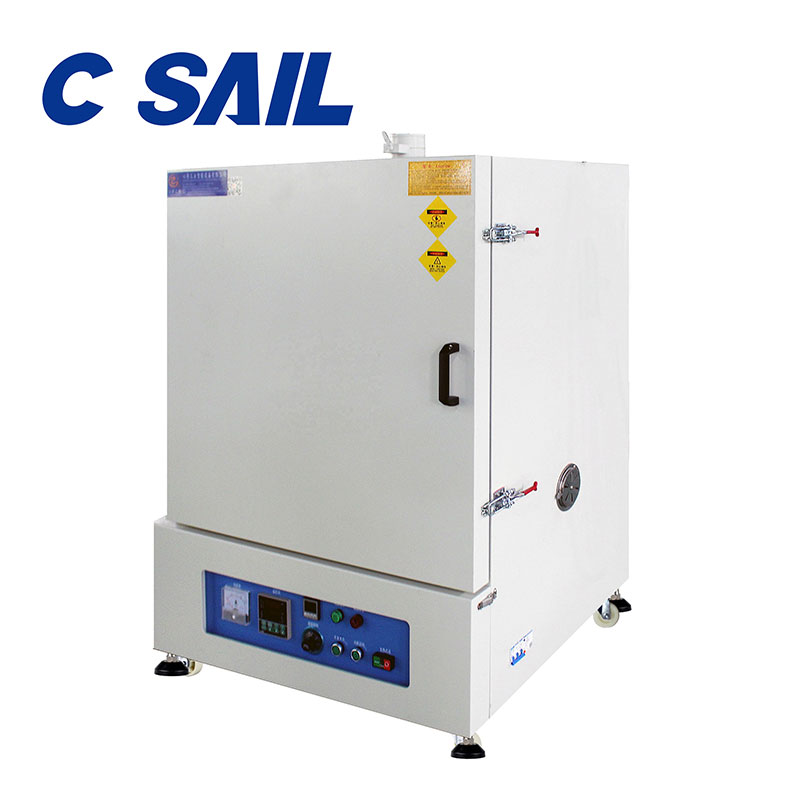

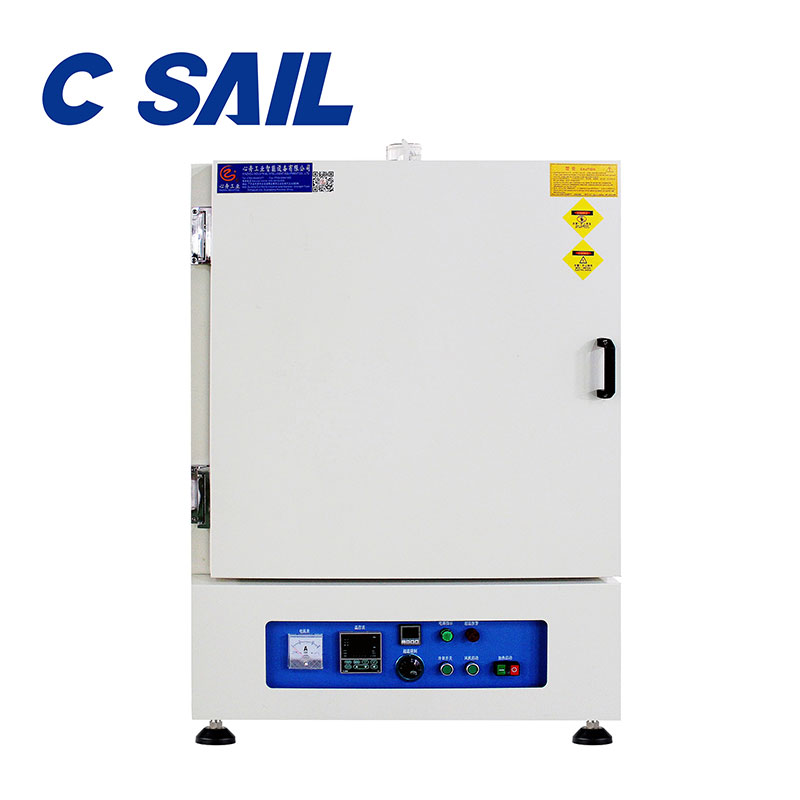

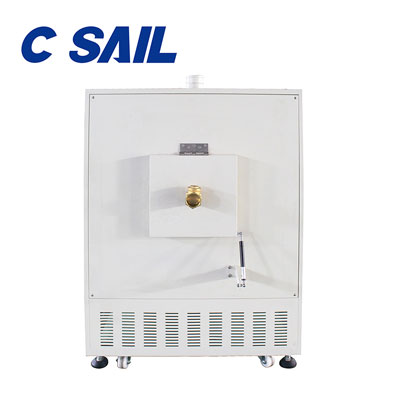

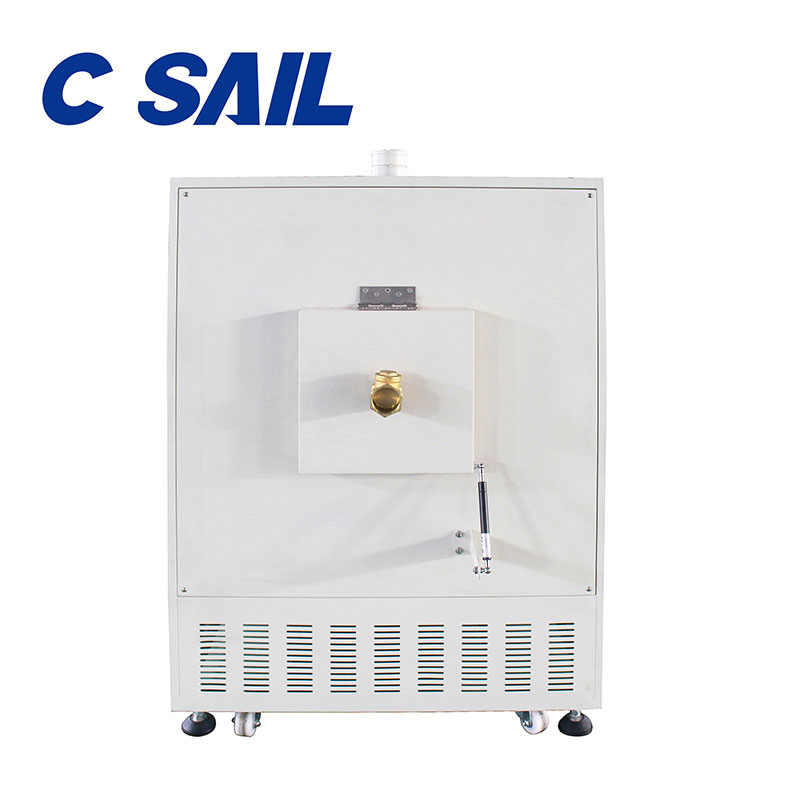

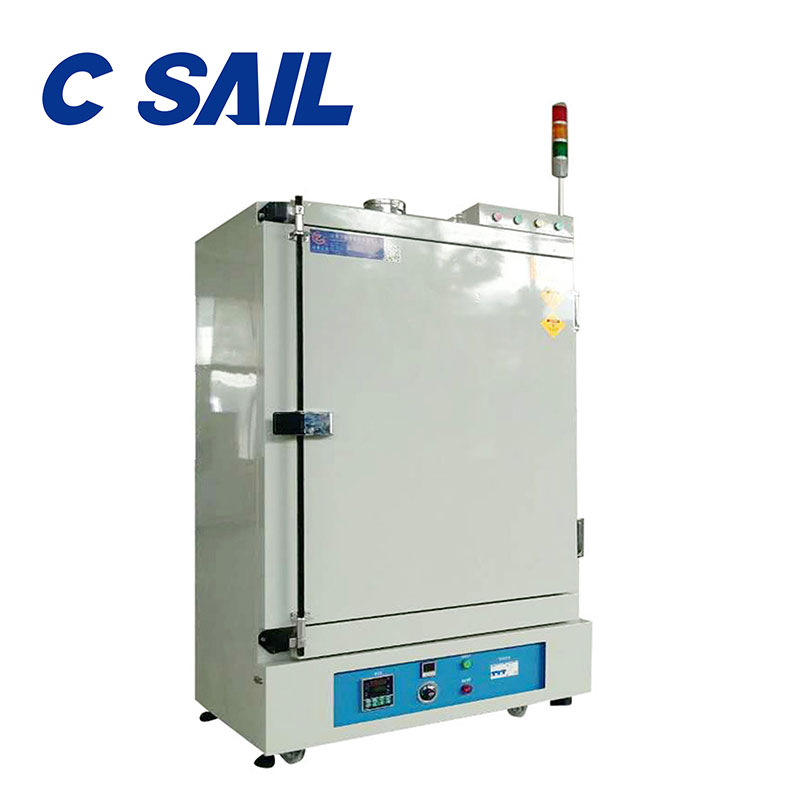

This drying equipment adopts the P961 multi-step temperature automatic controller (with 485 communication port for connecting to the computer). It is a drying machine primarily suitable for solid state capacitor. In order to prevent burning due to product volatilization, the structure can be designed with explosion proof function.
The basic parameters of this tunnel oven are listed below. For more information, please contact us.

SCO-3FB Polymerization drying machine

Model	SCO-3FB
Internal dimension (W×D×H) (mm)	650mm×600mm×650mm
External dimension (W×D×H) (mm)	1030mm×790mm×1450mm(For reference)
Power	AC380V 3Ø 50HZ 4.5kVA
Temperature range	RT~200℃
Temperature uniformity	±1%℃(empty test)
Temperature control accuracy	±1
Structure design	Adopts P961 multi-step temperature automatic controller (with 485 communication port for connecting to a computer, digital setting, temperature limit, overheat prevention alarm), constant air circulation
Air supply system	Forced hot air circulation, single side horizontal air supply system
Configuration:	1.Stainless steel heater 2.The inner chamber is divided into 6 layers, and the height of each layer is 110mm 3.3m power cable 4.Funnel type exhaust system
	Send an Inquiry

SCO-4FB Polymerization drying machine

Model	SCO-4FB
Internal dimension (W×D×H) (mm)	700mm×600mm×1000mm
External dimension (W×D×H) (mm)	1030mm×790mm×1680mm (for reference)
Power	AC380V 3Ø 50HZ 6kVA
Temperature range	RT~200℃
Temperature uniformity	±1%℃(empty test)
Temperature control accuracy	±1
Structure design	Adopting CAHO-P961 multi-step temperature automatic controller (digital setting, deadline temperature, overheat prevention alarm), automatic adjustment of air circulation
Air supply system	Single side horizontal air circulation, rewinding air supply
Configuration:	1.3m power cable, funnel type exhaust system 2.The diameter of the exhaust pipe is 150mm 3.The size of anti-explosion window is 300mm×300mm
