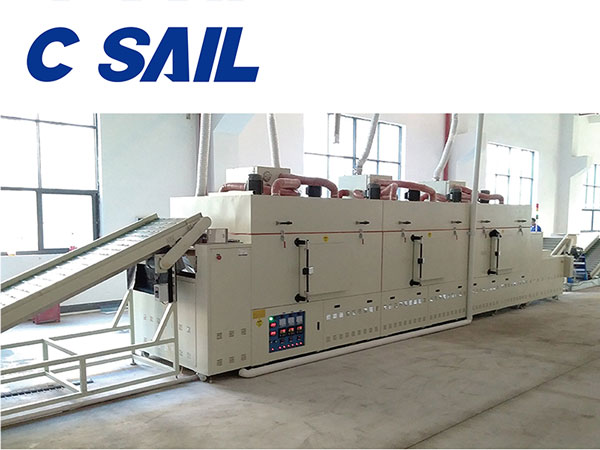

Food and Agricultural Products Drying Machine

This drying equipment is a high & low temperature drying machine designed for drying garlic slices, apple slices, jujube slices, ginger slices, mango slices, leafy plants and medicines, etc.

Power	AC380V 80kVA 50HZ
Inner size	W1550mm×L20000mm×H100mm
Outer size	W1600mm×L24000mm×H1750mm
Temperature control system	Adopting “XZ-480” controller, cooperated with solid state SSR output, temperature sensor, PID automatic calculation, LED digital display and setting, the accuracy is ±0.3%FS
Temperature range	RT~70℃
Temperature control accuracy	±1℃
Structure design	1.Feeding zone: 2000mm 2.Heating area: 20000mm (divided into 5 sections and each section has length of 4000 mm) 3.Discharging zone: 2000mm 4.Teflon width:1100mm
Conveying system	1.Adopting Teflon conveyor, driven by speed regulated motor & frequency converter from Taiwan, cooperated with strong type worm gearbox 2.1450±50mm from the feeding area port to floor 3.Converying direction: from left side to right side 4.The control panel is installed next to the feeding area port 5.Conveying speed : max. 5m/min
