Tunnel Oven for Bio-Pharmaceutical Industry

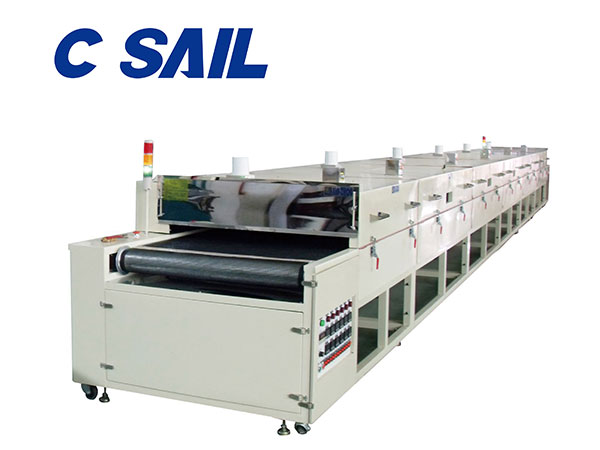

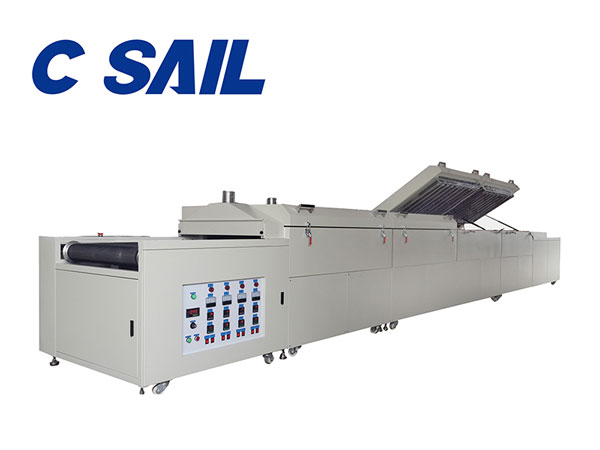

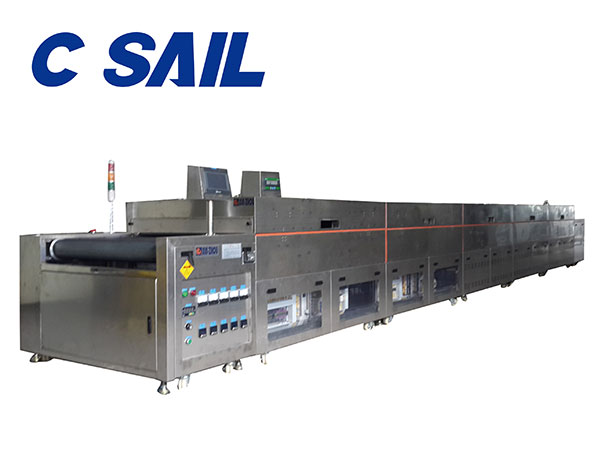

The following are three generations of drying equipment C SAIL has designed for pharmaceutical industries, and this type of drying equipment is equipped with 380V power supply, adopts 6-section heating method and an observation window for better control on the production progress.
| Power supply | AC380V 3φ 50Hz 40kVA |
| Internal dimension | W1100mm×L10000mm 6-section heating, the front and back end section has length of 1000mm; all other four middle sections have length of 2000mm. each middle heating section is assembled with 240mm×80mm glass observation window. |
| External dimension | W1360mm×L11200mm×H1150mm |
| Temperature control system | Room temperature~100℃, the temperature sensor is placed on top of the conveyor (80mm height) to detect the product surface temperature, with an accuracy of±0.5℃;Temperature uniformity is within ±1℃ under constant 50℃. |
| Adopts OMRON temperature controller from Japan, cooperates with SSR output control from Taiwan "FOTEK", PID automatic calculation and LED display. | |
| Structure design | 1. Adopts Teflon conveyor belt driven by 1HP speed regulated motor & 1HP transducer from Taiwan "ENC", cooperated with 1:500 worm gearbox. |
| 2. Feeding zone: 600mm; discharging zone: 600mm, the feed/discharge opening is equipped with wind shield and could adjust the opening height. The feed/discharge zone is enclosed with SS#41 cold rolled steel plates. | |
| Airflow system | Adopts 6-section jet flow fan, air exhaust volume is approximately 3~6m3/min. |
| Conveying speed | Max. 0.4~1m/min, each zone is equipped with 6 temperature sensors and 4 explosion proof lights. |
