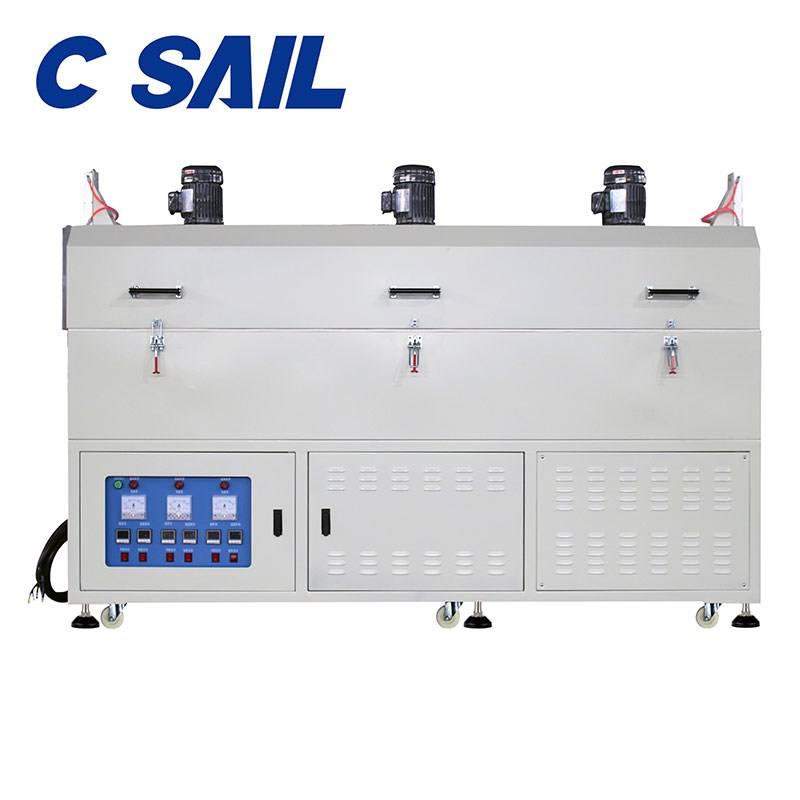

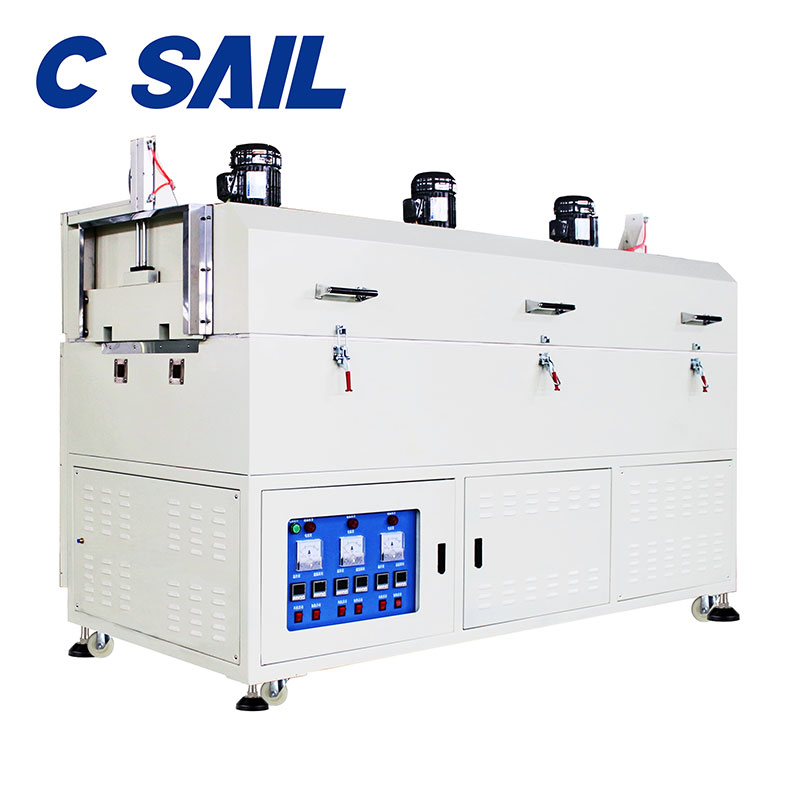

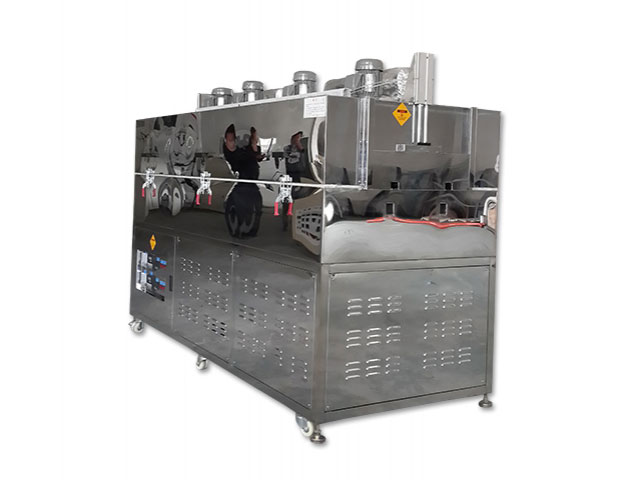

SCO-4-3 Laminate Conveying Hot Air Tunnel Carbonized Oven
| Application | Industrial oven designed for carbonization process of solid/polyer capacitors. |
| Power supply | AC380V 3φ 50Hz 22kVA |
| Internal dimension | W500mm×L2286mm×H120mm, |
| External dimension | W860mm×L2286mm×H1500mm (for reference only, customizing at your desire) |
| Detailed dimension | 1. Heating zone: 2286 mm (divided into 3 sections) |
| 2.Conveyor width: 400 mm, feed/discharge opening height: 120 mm. | |
| Temperature control system | 1. Temperature range: room temperature+25℃~250℃, it takes approximate 10 minutes heating from room temperature to 220℃. |
| 2. Controller: adopts XZ-960S digital temperature controller, digital setting cooperated with SSR output control from Taiwan, PID automatic calculation, and LED display. | |
| 3. The temperature controller has accuracy within ±0.5%FS; temperature uniformity±5℃ under normal processing temperature at 220℃, oven tested without loading. | |
| Structure design | 1. Structure material: The internal structure adopts SUS #430 mirror-polished stainless steel plate; the external structure adopts SS#41 cold rolled steel plate. |
| 2. The equipment frames is welded with 40*40*1.5thickness square tubes, the working platform is enclosed with SS#41 sheet metal, all in white color. | |
| 3. Adopts 120K high temperature resistant cotton insulation with effective thickness of 100mm, additional air layer, sealed with high temperature resistant rubber seal strips up to 260℃. | |
| 4. Pneumatic door designed in the discharge zone (blackout cloth). | |
| 5. Perfect vertical air flow system. | |
| 6. Satisfies the time requirements on solid capacitor carbonization. |
