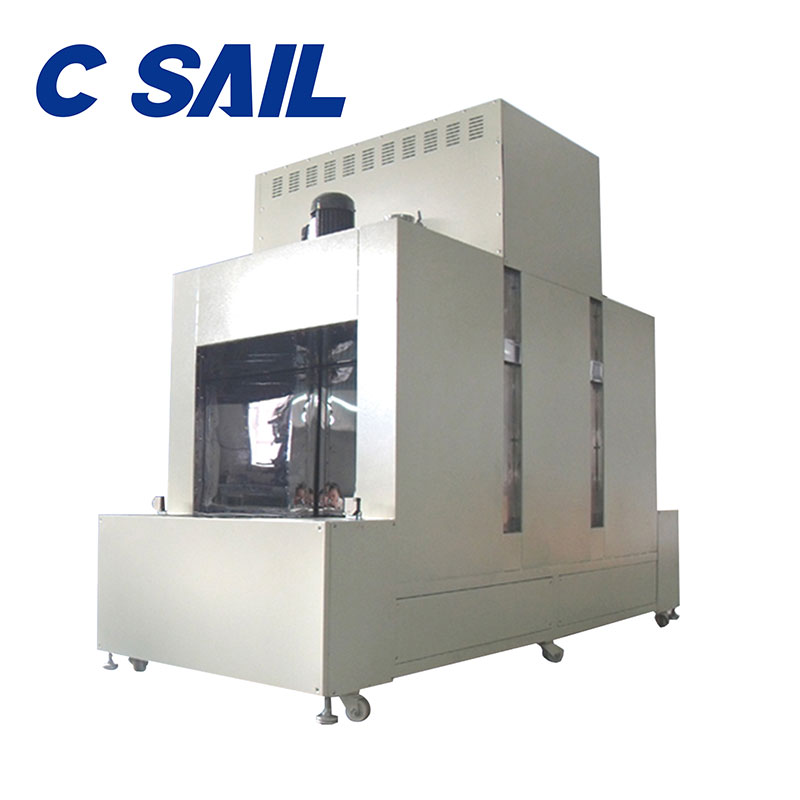

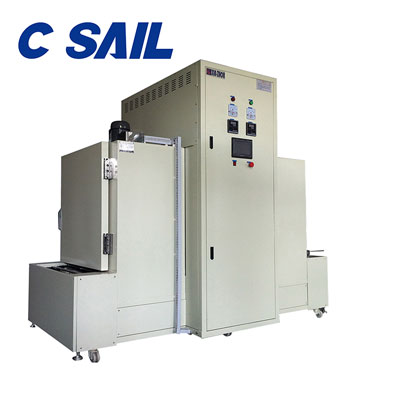

SCO-5-1 Laminate Conveying Hot Air Tunnel Polarization Oven
| Power supply | AC380V 3φ 50Hz 40kVA |
| Internal dimension | W550mm×L2768mm×H100mm, |
| External dimension | W860mm×L4200mm×H1500mm (for reference only, customizing at your desire) |
| Detailed dimension | 1.Heating zone: 2768 mm (divided into 8 heating sections) |
| 2.Conveyor width: 550 mm, feed/discharge opening height: 100 mm. | |
| Temperature | 1. Temperature range: room temperature +25℃~300℃, it takes approximate 15 minutes heating from room temperature to 230℃. |
| 2. Controller: adopts XZ-960S digital temperature controller, PID automatic calculation, LED display and cooperated with SSR output control from Taiwan. | |
| 3. The temperature controller has accuracy within±0.5%FS; temperature uniformity ±2%, oven tested without loading. |
