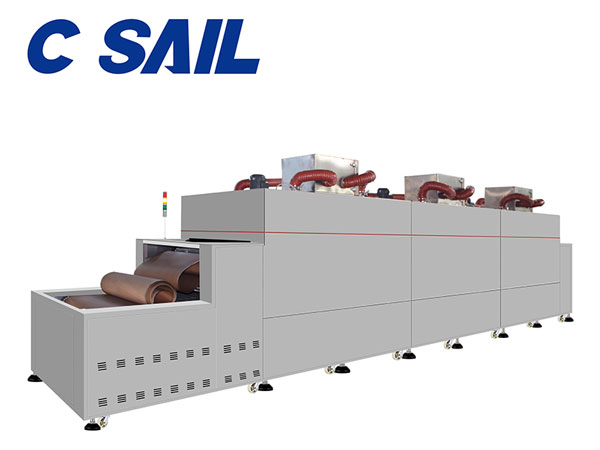

SECO-10-3 Multi-layer Conveyor Hot Air Tunnel Oven
| Power supply | AC380V 3φ 50Hz 60kVA |
| Internal dimension | W1100mm×L8000mm×H750mm, |
| External dimension | W1550mm×L9000mm×H1950mm (for reference only, customizing at your desire) |
| Detailed dimension | 1.Feeding zone: 500mm. |
| 2.Heating zone: 8000 mm (divided into 4 sections and each section has length of 2000 mm) | |
| 3.Conveyor width: 1000 mm. | |
| 4.Feed/discharge opening height: 100 mm. | |
| Temperature control system | 1. Temperature range: room temperature~200℃it takes approximately 20 minutes heating from room temperature to 150℃. |
| 2. Controller: adopts Xinzhou H961 temperature controller, digital setting, PID automatic calculation, LED display. | |
| 3. The temperature controller has accuracy within ±0.5%FS; | |
| 4. Temperature uniformity ±2%. (tested without loading) | |
| Attentions | 1. First and second conveying layer has length of 8000mm, and the third layer has length of 9000mm. |
| 2. Each layer is equipped with supporting rollers and vent plates. | |
| 3. Make sure products are evenly spread on the conveyor. | |
| Functions | 1. Fast drying speed with uniform temperature spreading. |
| 2. SSR power control to minimize temperature fluctuation. | |
| 3. Sanitary design best fits dust-free workshop. | |
| 4. Complete safety protection facilities. | |
| 5. Multiple layers of thermal insulation with good sealing results. | |
| 6. The equipment frame adopts welded metal square tubes, and strengthened with steel channels. | |
| 7. Steady transportation to keep products in position. | |
| 8. The inner structure adopts argon arc welded mirror-polished stainless steel for sanitary purpose. | |
| 9. Energy saving, the steady output is only ¼ of rated output power. |
