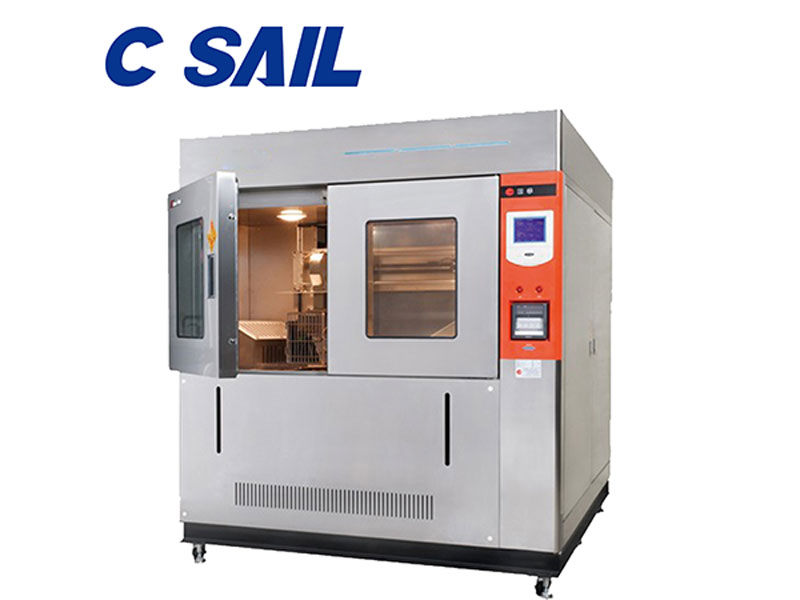

Thermal Shock Test Chambers
Thermal shock testing chambers are used to conduct destructive tests on products. Our thermal shock testing chamber has 3 individual chambers: a high temperature chamber, low temperature chamber and feeding chamber. Products can be transferred from a chamber with a temperature of 150℃ to chamber with a temperature of -60℃ to determine whether the product is damaged or not. Thermal shock testing chambers are widely used to test electronics, electrical appliances, cellphones, communication equipment, instruments, vehicles, plastic products, metals, and more.
| Model | |||||
| Inner Size (mm) | 400*350*300 | 500*400*400 | 600*500*500 | 700*600*600 | 800*750*750 |
| Outer Size (mm) | 1400*1800*1450 | 1480*1900*1550 | 1600*2000*1750 | 1750*2100*1870 | 1900*2200*2000 |
| Temp. Range | （150℃~A: -45℃; B: -55℃; C: -65℃）; (High Temp. Zone: +60℃ ~ +150 ℃; Low Temp. Zone: -10 ℃ ~ - 65 ℃) | ||||
| Heating Rising Time | RT ~ 200℃ needs to take about 35min | ||||
| Cooling Time | RT ~ -70℃ needs to take about 85min | ||||
| Temp. Recover / Change Time | ≤5 min / ≤10 sec | ||||
| Temp. Control / Distribution Precision | ±0.5 ℃ / ±2.0℃ | ||||
| Material | SUS 304 stainless steel plate with fog treatment for whole machine; Inside material with stainless steel | ||||
| Heat Preservation Material | High Temp. High Density resistance insulation material | ||||
| System | P.I.D + S.S.R + Micro computer temperature balance control system | ||||
| Cooling System | Semi-closed with double segment compressor (Water-cooled) / Full closed with double segment compressor (Air-cooled) | ||||
| Safety protection device | No-fuse switch, high & low pressure protection switch for compressor, refrigerant high voltage protection switch, fault warning system, electronic alarm etc. | ||||
| Components | Observation window (special optional), two pieces of shelves (adjustable), electric wire testing hole, casters | ||||
| Power | AC380V 50/60HZ 3φ | ||||
| Weight | 700Kg | 900Kg | 1200Kg | 1400Kg | 1900Kg |
| Controller | South Korea "TEMI"800 | ||||
| Compressor | France's "Tecumseh" Brand | ||||
