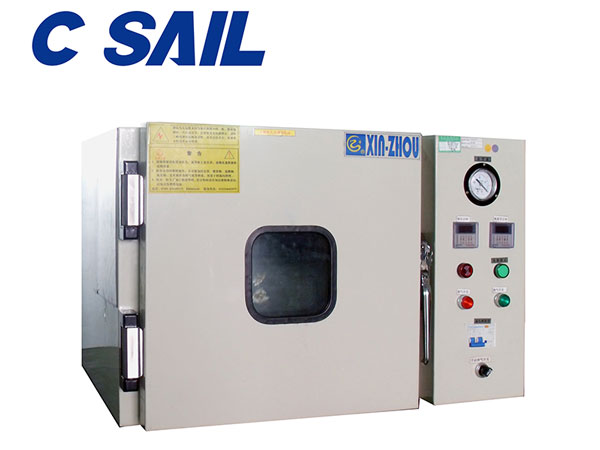

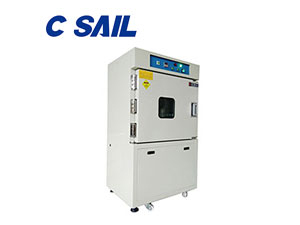

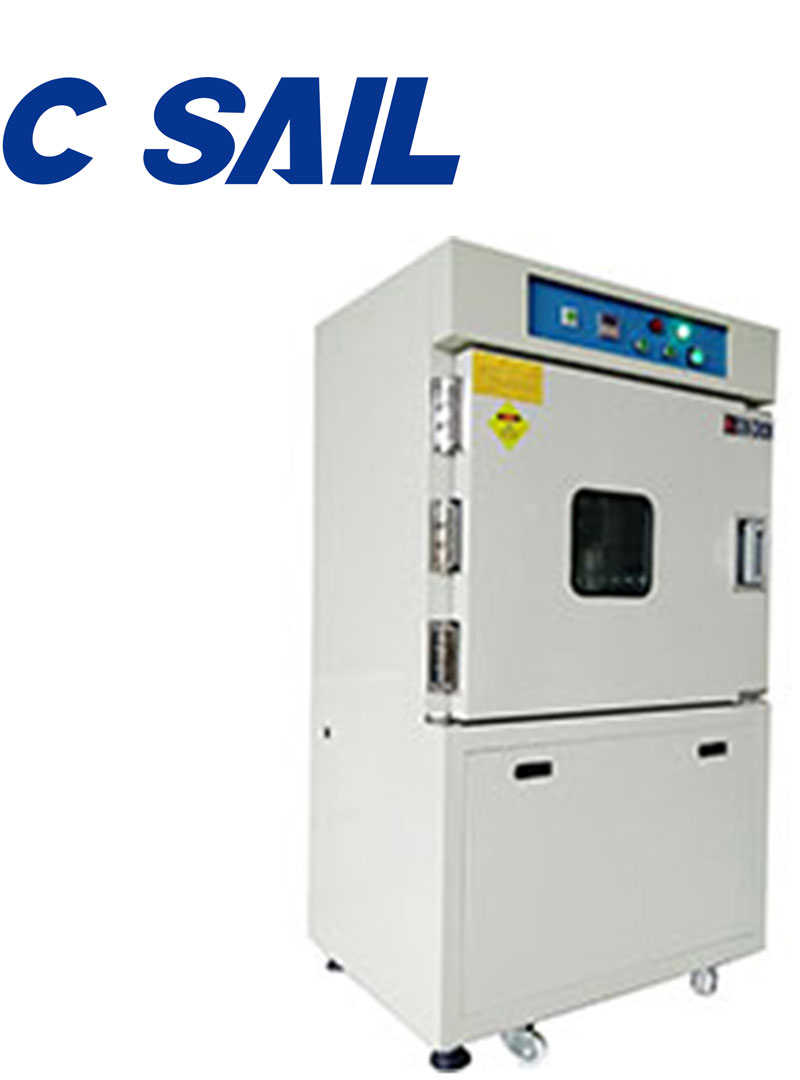

Vacuum Leakage Test and Storage Machine

With a simple structure, the vacuum chamber with a leaking tester is able to create a vacuum environment with vacuum pressure of 0.095~0.1Mpa. The vacuum chamber with leaking tester is mainly used for storing oxidizable products such as semiconductors, electronic components, optical films and more. Besides, this vacuum chamber can also be used for testing airtightness of products like perfume, batteries.
Customers can choose a variety of different vacuum chamber models and specifications, including single door, 3 doors, and 4 doors. Basic information about these vacuum chambers is displayed below. Please contact us for more specific information.

Parameters:
  • Adopt 5mm SUS stainless steel sheet for inner chamber, SS41# cold-rolled steel sheet for external case.
  • Vacuum degree≤133Pa，Leakage rate≤200Pa/H
  • Equipped with earth leakage protector etc.

Model Inner Size Outer Size Doors Power Remark
(W*D*H, mm) (W*D*H, mm)
XZK-1 300*300*300 600*450*450 Single AC380V 1. Vacuum Degree ≤133Pa
2. Leakage Rate ≤200Pa/H
XZK-2 400*400*400 700*550*550
XZK-3 500*500*500 600*600*1500
XZK-4 600*600*600 700*700*1600
XZK-4F-01 800*600*400 700*700*1500
XZK-4F-02 700*700*600 800*800*1600
XZK-5 720*1000*600 850*1150*1600
XZK-5F 850*850*600 980*1200*1600
XZK-6F-01 1400*600*800 1500*760*1200
XZK-6F-02 1500*800*500 1660*1050*820
XZK-2F-3D 600*600*300*3chamber 1250*760*1560 Three

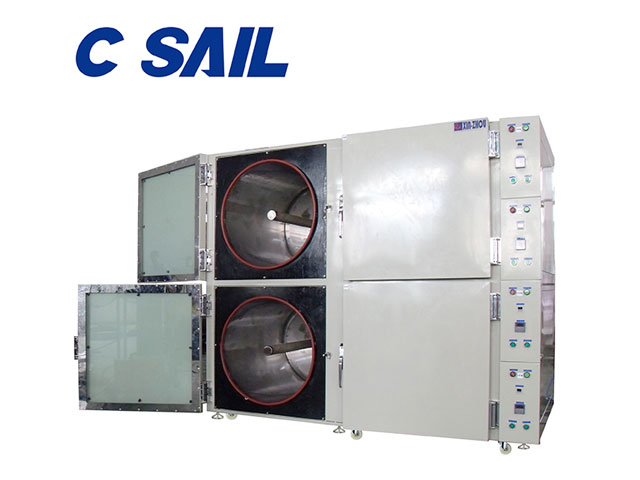

XZK-4R φ600*800*4 Chamber 1650*1120*1750 Four
