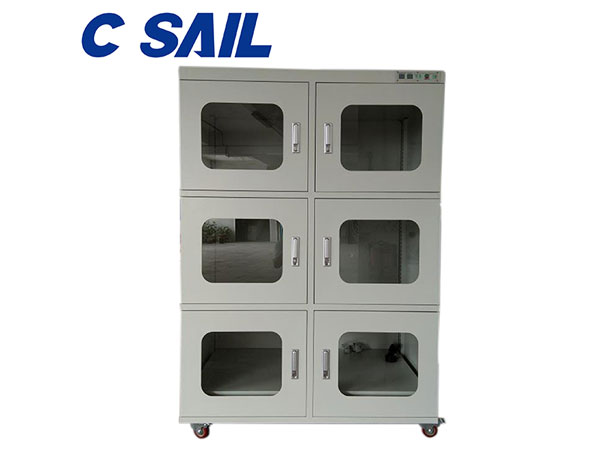

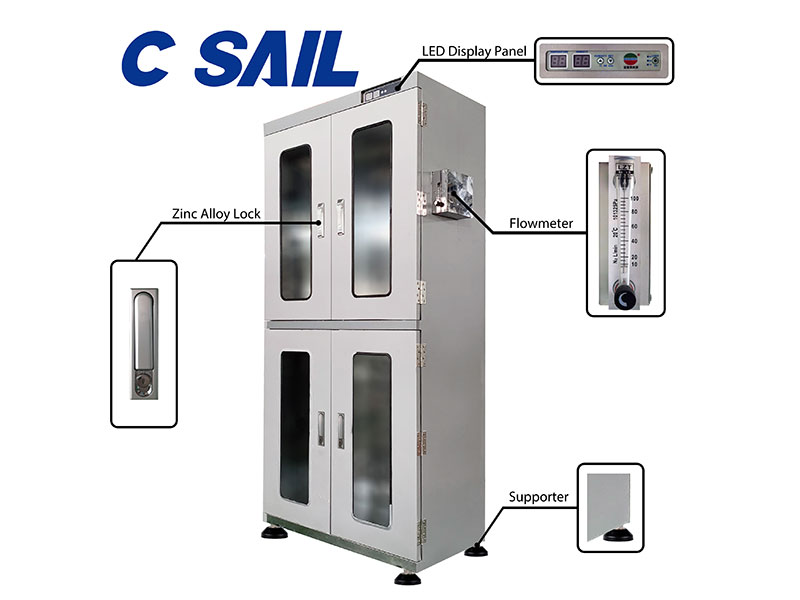

Nitrogen Drying Cabinet
The nitrogen purge cabinet is used for dehumidification and preventing oxidation after usage with a nitrogen system. The nitrogen purge cabinet can be linked to bottled nitrogen, nitrogen generator, nitrogen tanks and other nitrogen equipment. The nitrogen inlet diameter is 6mm, and equipped with an electric valve.
The nitrogen purge cabinet is used for storing oxidizable products, such as semiconductors, electronic components, LCD glass substrates, optical films, instruments and more. Parameters:
Humidity Control Range: 5%RH-Current Ambient Humidity.
Humidity Fluctuation: ±3%RH.
Temperature Control Range: Ambient Temperature ±3%℃
Voltage: 100V-220V
The nitrogen purge cabinet is used for storing oxidizable products, such as semiconductors, electronic components, LCD glass substrates, optical films, instruments and more. Parameters:
Humidity Control Range: 5%RH-Current Ambient Humidity.
Humidity Fluctuation: ±3%RH.
Temperature Control Range: Ambient Temperature ±3%℃
Voltage: 100V-220V
| Model | Specification | Layer | Doors |
| W400mm×D400mm×H560mm（External） W350mm×D280mm×H435mm（Internal） | 1 | Single | |
| W400mm×D400mm×H980mm（External） W350mm×D280mm×H815mm（Internal） | 3 | 2 | |
| W450mm×D450mm×H1000mm（External） W400mm×D400mm×H835mm（Internal） | 3 | Single | |
| W604mm×D420mm×H1310mm（External） W554mm×D370mm×H1145mm（Internal） | 3 | 2 (up and down) | |
| W900mm×D450mm×H1000mm（External） W850mm×D400mm×H835mm（Internal） | 3 | 2 (left and right) | |
| W604mm×D550mm×H1520mm（External） W554mm×D500mm×H1355mm（Internal） | 4 | 2 (up and down) | |
| W600mm×D450mm×H1800mm（External） W554mm×D400mm×H1635mm（Internal） | 5 | 3 (up, middle and down) | |
| W1000mm×D500mm×H1400mm（External）W950mm×D450mm×H1235mm（Internal） | 4 | 2 (left and right) | |
| W1200mm×D450mm×H1600mm（External）W1150mm×D400mm×H1435mm（Internal） | 4 | 4 (2 left and 2 right) | |
| W1200mm×D600mm×H1800mm（External）W1150mm×D550mm×H1600mm（Internal） | 5 | 4 (2 left and 2 right) | |
| W1250mm×D700mm×H1800mm（External）W1200mm×D650mm×H1600mm（Internal） | 5 | 6 (3 left and 3 right) |
