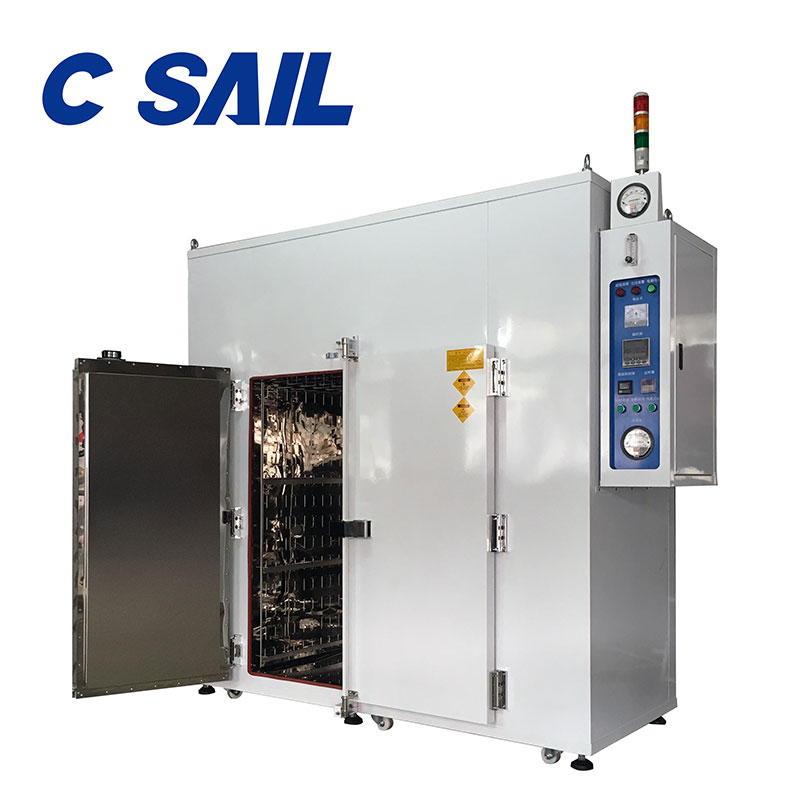

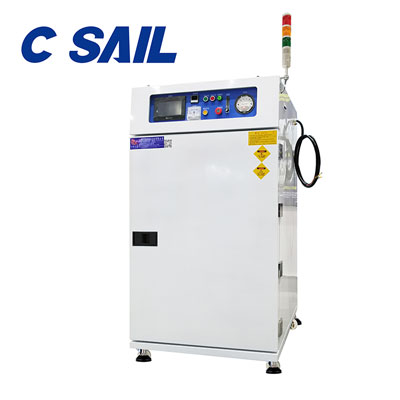

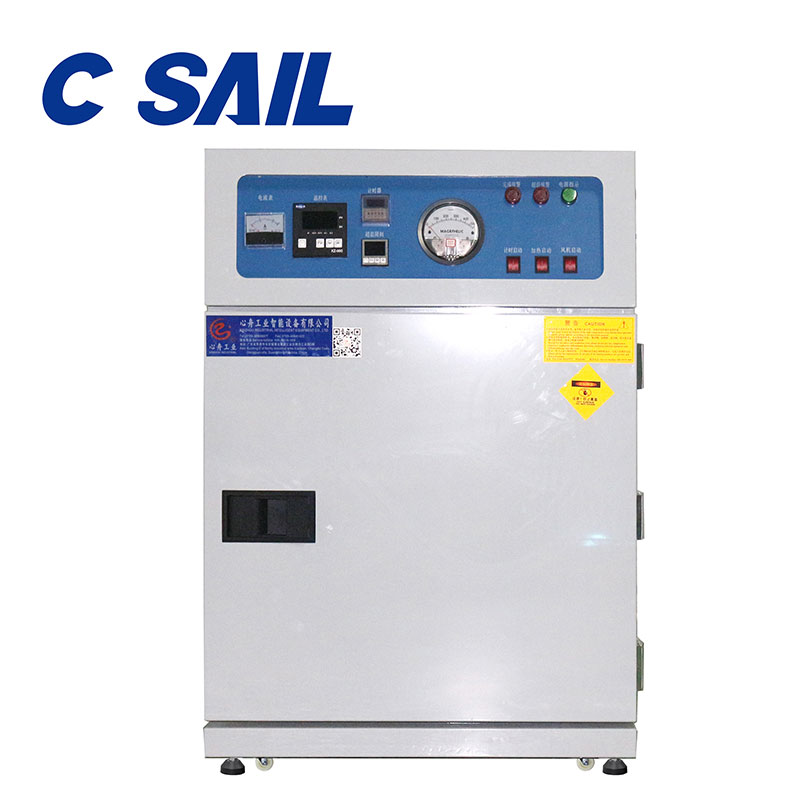

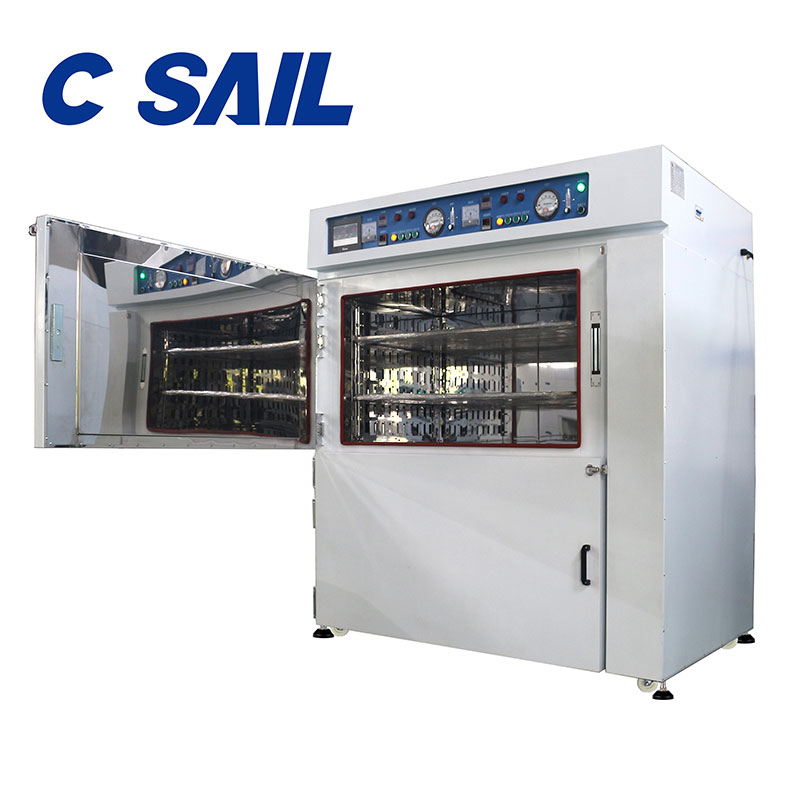

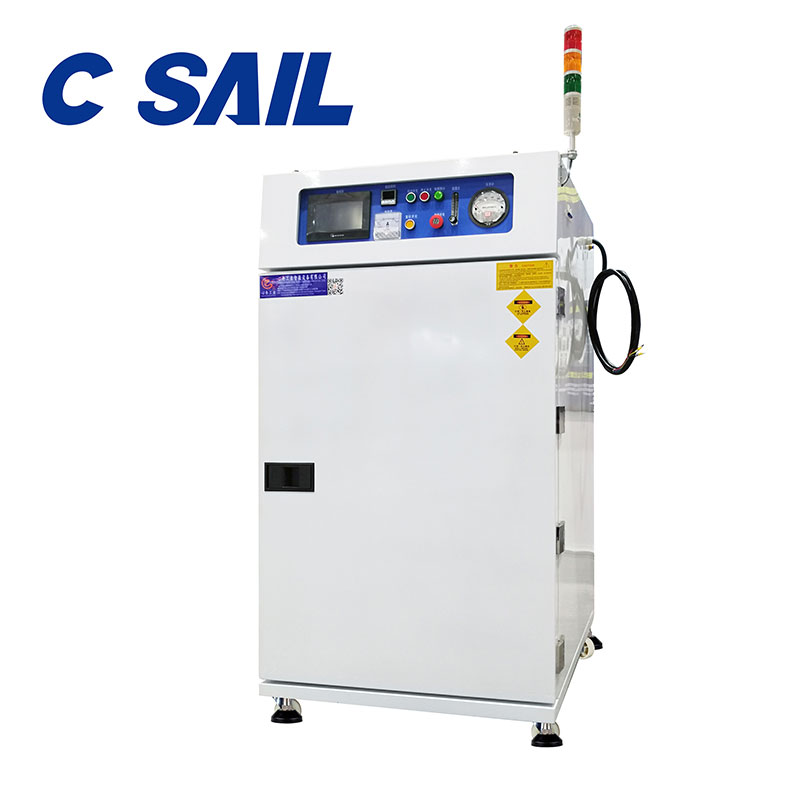

Class 100 oven/Clean Room Oven

This dustless industrial drying oven has a most prominent characteristic of maintaining cleanliness at a high level, that means a dust particle of 0.5μm has to be controlled less than 100 per square meter. A dustless industrial drying oven is mainly used for products requiring high level of cleanliness, such as cellphone, digital camera, LCD touch screen, etc.

The common drying temperature range of dustless industrial drying oven is ambient temperature to 200℃. Dustless industrial drying ovens with the highest drying temperature of 300~600℃ need to be customized.

Features
The inner chamber adopts an 8K mirror surface stainless steel plate. Thanks to this, the dust cannot be attached to the inner chamber. Then through internal hot air circulation, the dust will be filtered by the high-efficiency air filter when reaching the air duct. During the drying process, the inner chamber needs to be sealed tightly and entirely, so that no dust will be produced. And the internal pressure of the inner box should be a little higher than external pressure to prevent the dust entering the inner chamber.

According to the dimensions of the oven, we can offer clients a series of dustless industrial drying ovens with different specifications. The basic parameters are listed below.

Model MOL-1F MOL-1ND MOL-2ND MOL-3ND MOL-4ND MOL-2DF MOL-7F MOL-8WS MOL-9WS
Inner size (W×D×H)(mm) 300X400X400 450X400X400 500X500X600 600X500X900 800X600X1000 600X600X1000(single box) 1200X700X1300 840X710X1530(single box) 1010X740X1510(single box)
Outer size (W×D×H)(mm) 560X840X980 710X840X980 860X940X1280 860X1150X1780 1060X1250X1880 1500X860X1760 1960X1015X2140 3160X1215X2455 3340X900X2458
Power 3kVA 3kVA 5kVA 6kVA 7kVA 7kVA 20kVA 24kVA 26kVA
Temperature range Room Temperature ~200℃(300℃)
Temperature uniformity ±1℃ ±1℃ ±1% ±1% ±1% ±1% ±2% ±2% ±2%
Air inflow N2 or Clean Air, Max.: 100L/min
Filtration efficiency 99.99%
Cleanliness class Class100
Air outlet Ø3 Automatic Ø5 Automatic
Optional Six point temperature meter, printing machine, temperature logging device, touch screen ,USB and computer monitoring system, multi-step programmable controller, RS485 interface and communication software, wireless alarm system, USB flash drive.
Features 1. Dustless and highly uniform temperature distribution
2. The cleanliness class is class 100
3. Automatic air exchange, automatic cooling
Send an Inquiry

Optional
Six point temperature meter, printing machine, temperature logging device, touch screen, USB and computer monitoring system, multi-step programmable controller, RS485 interface and communication software, wireless alarm system, USB flash drive.

Features
1. Dustless and highly uniform temperature distribution
2. The cleanliness class is class 100
3. Automatic air exchange, automatic cooling
